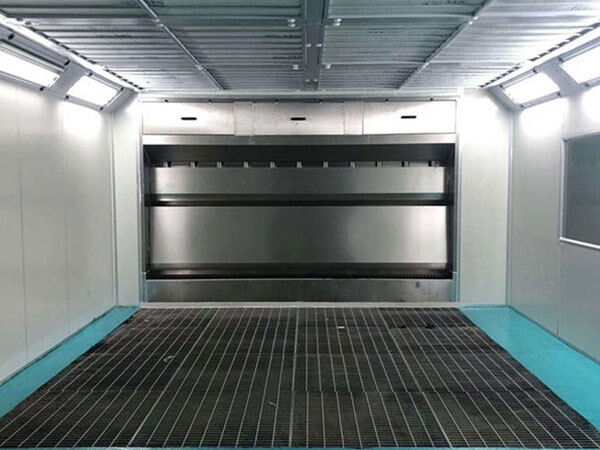

High-Volume Water Wash Spray Booth with Waterfall Filtration System for Continuous Liquid Painting Operations

High-Volume Water Wash Spray Booth with Waterfall Filtration System for Continuous Liquid Painting Operations

Overview:

For high-production environments using significant amounts of liquid paint, the CT-HydroCapture uses a curtain of water (waterwall) to trap overspray efficiently. This method reduces fire risks and is ideal for capturing heavy, sticky paints that rapidly clog dry filters. It includes a sludge removal tank for easy maintenance.

1, Efficient Paint Mist Capture - Utilizes water curtain filtration technology to effectively capture 80%-95% of overspray, reducing environmental pollution and ensuring clean air in the workplace.

2, Customizable Design - Supports tailored dimensions, power, and materials (stainless steel/PP plastic, etc.) to accommodate different workpiece sizes and painting needs.

3, Energy-Saving & Eco-Friendly -  Features a recirculating water system with paint coagulant (AB agent) to minimize wastewater discharge, complying with GB16297/EPA environmental standards.

4, Durable & Reliable - Made of high-quality stainless steel or corrosion-resistant PP material, resistant to rust and chemicals, ideal for automotive repair, furniture manufacturing, and industrial applications.

5, Smart Control - Optional PLC automatic control system for precise adjustment of water flow and fan speed, ensuring easy operation and energy efficiency.

6, Comprehensive After-Sales - Includes installation guidance, 1-year warranty, and lifetime maintenance, with remote technical support or on-site debugging for long-term stable operation.

Product Features

1, High-efficiency water curtain filtration system

• Multi-layer water screen design with ≥90% paint mist capture rate
• Recirculating water system minimizes wastewater discharge

2, Modular structure design

• Customizable length/width/height configurations
• Stainless steel/PP material options for various environments

3, Intelligent control system

• PLC auto-adjusts water pressure & airflow
• Touchscreen interface with real-time monitoring

4, Eco-friendly energy-saving features

• Built-in oil-water separator & paint sludge collector
• 30%+ more energy-efficient than conventional units

5, Industrial-grade safety protection

• Explosion-proof motor & spark-proof construction
• Complies with OSHA & CE safety certifications
